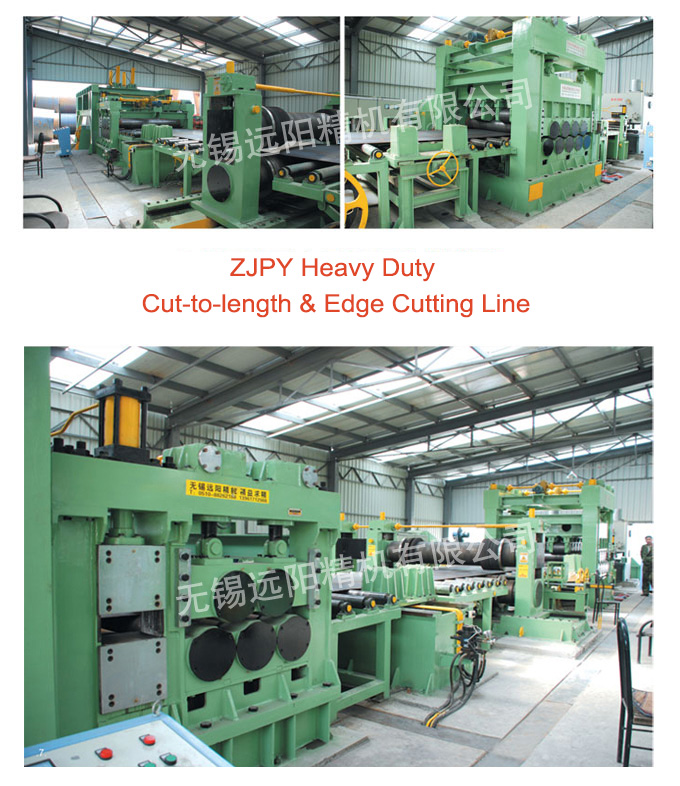

WUXI YuanYang MACHINERY CO.,LTD

★ Cutting accuracy and precision thanks to the machine solidity

★ High quality on flatness

★ High precise cut to length control

★ High quality on cutting

★ High efficiency for production

★ Delightful man-machine interface

Model	ZJPY11/4-12×2000	ZJPY11/4-16×2100	ZJPY9/7-25×2300
Coil Material	δs≤230N/mm2,Hot-rolled Coil,Stainless Steel Coil
Coil Thickness	3.0～12.00	4.0～16.0mm	8.0～25.0mm
Cutting Edge Thickness	≤10.0mm	≤12.0mm	≤16.0mm
Coil Width	800～2000mm	1000～2100mm	1000～2300mm
Coil Weight	≤25T	≤30T	≤40T
Coil O.D	φ610mm～φ820mm	φ610mm～φ820mm	φ610mm～φ820mm
Cutting Range	500～12000mm	500～12000mm	500～12000mm
Cutting Accuracy	±1.5mm	±1.5mm	±1.5mm
Line Speed	0～25m/min	0～25m/min	0～25m/min
Electrical Control System	PLC Automatic control
